Reducing Flange

Your position: Home > Products  > Reducing Flange > Carbon Steel Reducing Filler Flanges

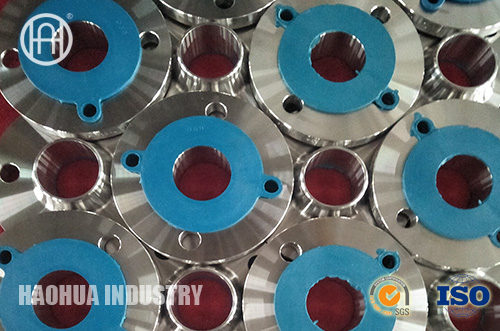

Carbon Steel Reducing Filler Flanges

  • Standard:ASME B16.5,ANSI B16.5
  • Size:1/2"~24"
  • Pressure:CL150,CL300,CL600,CL900,CL1500
  • Specification:PL,SO,SW,WN,BL,LWN,TH,LF,LJ
  • Material:A182 F304
CONSULTATION SEND E-MAIL
  • Carbon Steel Reducing Filler Flanges

Product Information



Reducing flanges are designed for when there is a change in the pipe size. The predominate flange (dimensions) matching the larger pipe size (NPT) but having a smaller bore matching the smaller pipe size (NPT). These flanges normally come in blind, slip-on, threaded and weld neck flanges. They are available in all pressure classes and provide a good alternative to connecting two different sizes of pipe. This type of flange should not be used if an abrupt transition would create unwanted turbulence, such as at a pump.

Designed for use in changing diameters in a piping system. A reducing flange consists of a flange with one specified diameter having a bore of a different and smaller, diameter

Except for the bore and hub dimensions, the flange will have dimensions of the larger pipe size. Reducing flanges are normally provided as one of three types:

  • Reducing Welding Neck flange

  • Reducing Slip-On flange

  • Reducing Threaded flange

1.ASME

ANSI B16.5,ASME B16.5,ASME B16.47,ASME B16.36,ASME B16.48,AWWA C-207,API 605,API590,MSS SP44,API6A

2.DIN

DIN2527,DIN2566,DIN2573,DIN2576,DIN2627,DIN2628,DIN2629,DIN2630,DIN2631,DIN2632,

DIN2633,DIN2634,DIN2635,DIN2636,DIN2637,DIN2638,DIN2641,DIN642,DIN2655,DIN2656,

DIN2673,DIN28030,DIN28031,DIN28032,DIN28036,DIN28038,DIN86029,DIN86030,DIN11864-2

3.EN

EN1092-1,EN1759-1

4.BS

B.S 3293,B.S 4504,B.S 10

5.ISO

ISO 7005-1

6.AS

AS2129,AS4087, AS, NZS 4331.1

7.JIS

JIS B2220,JIS B2238,JIS B2290,JIS G3443-2,JPI-7S-15,JPI-7S-43

8.UNI

UNI2253,UNI2254,UNI2276,UNI2277,UNI2278,UNI2280,UNI,2281~2286,UNI6091~6094

Size

1/8”~160”,DN10~DN4000

Pressure

PN1,PN2.5,PN6,PN10,PN16,PN25,PN40,PN64,PN100,PN160,PN250,PN320,PN400

CLASS75,CLASS150,CLASS300,CLASS400,CLASS600,CLASS900,CLASS1500,CLASS2500

2K,5K,10K,16K,20K,30K,40K

Specification

Plate Flange,Slip-On Welding Flange,Welding Neck Flange,Threaded Flange,Socket Welding Flange,Blind Flange,Long Welding Neck Flange,Lap Joint,Loose Plate Flange,Orifice Flange,Reducing Flange,Integral flange,Figure-8,Paddle Blank,Paddle Spacer,Specatcle Blind,Squre Flange,Reducing Flange, Orifice Flange

Material

1.Carbon Steel

A105,A350 LF1,A350 LF2,A350 LF3

2.Stainless Steel

ASTM SA-182/SA-182M F304,F304H,F304L,F316,F316H,F316L,F321,321H,F316Ti,317,F317H,F347,F904L,F310

3.Duplex Stainless Steel

F51,F53,F60

4. Hastelloy

Hastelloy  B,Hastelloy  B-2,Hastelloy  B-3,Hastelloy  C-4,Hastelloy  C-22,,Hastelloy  C-276,Hastelloy  C-2000,Hastelloy  G-35,Hastelloy  G-30,Hastelloy N,Hastelloy S,Hastelloy X

5. Haynes

Haynes 188,Haynes 230,Haynes 556

6. Incoloy

Incoloy 020,Incoloy 800,Incoloy 800H,Incoloy 800HT,Incoloy 825,Incoloy 925,Incoloy A-286,

7. Inconel

Inconel 600,Inconel 601,Inconel 617,Inconel 625,Inconel 718,Inconel X750

8. Monel

Monel 400,Monel 401,Monel 404,Monel K-500

9. Nickel

Nickel 200,Nickel 201
