Threaded Flange

Your position: Home > Products  > Threaded Flange > Black Threaded Flanges

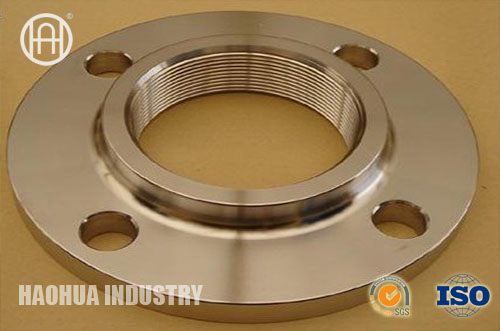

Black Threaded Flanges

  • Standard:ASME B16.5
  • Size:1/2"~24"
  • Pressure:CL150,CL300,CL600,CL900,CL1500
  • Specification:THRF
  • Material:A182 F304
CONSULTATION SEND E-MAIL
  • Black Threaded Flanges
  • Black Threaded Flanges

Product Information



Threaded Flanges are used for special circumstances with their main advantage being that they can be attached to the pipe without welding. Sometimes a seal weld is also used in conjunction with the threaded connection.

Although still available in most sizes and pressure ratings, screwed fittings today are used almost exclusively in smaller pipe sizes.

A threaded flange or fitting is not suitable for a pipe system with thin wall thickness, because cutting thread on a pipe is not possible. Thus, thicker wall thickness must be chosen...what is thicker ?

1.ASME

ANSI B16.5,ASME B16.5,ASME B16.47,ASME B16.36,ASME B16.48,AWWA C-207,API 605,API590,MSS SP44,API6A

2.DIN

DIN2527,DIN2566,DIN2573,DIN2576,DIN2627,DIN2628,DIN2629,DIN2630,DIN2631,DIN2632,

DIN2633,DIN2634,DIN2635,DIN2636,DIN2637,DIN2638,DIN2641,DIN642,DIN2655,DIN2656,

DIN2673,DIN28030,DIN28031,DIN28032,DIN28036,DIN28038,DIN86029,DIN86030,DIN11864-2

3.EN

EN1092-1,EN1759-1

4.BS

B.S 3293,B.S 4504,B.S 10

5.ISO

ISO 7005-1

6.AS

AS2129,AS4087, AS, NZS 4331.1

7.JIS

JIS B2220,JIS B2238,JIS B2290,JIS G3443-2,JPI-7S-15,JPI-7S-43

8.UNI

UNI2253,UNI2254,UNI2276,UNI2277,UNI2278,UNI2280,UNI,2281~2286,UNI6091~6094

Size

1/8”~160”,DN10~DN4000

Pressure

PN1,PN2.5,PN6,PN10,PN16,PN25,PN40,PN64,PN100,PN160,PN250,PN320,PN400

CLASS75,CLASS150,CLASS300,CLASS400,CLASS600,CLASS900,CLASS1500,CLASS2500

2K,5K,10K,16K,20K,30K,40K

Specification

Plate Flange,Slip-On Welding Flange,Welding Neck Flange,Threaded Flange,Socket Welding Flange,Blind Flange,Long Welding Neck Flange,Lap Joint,Loose Plate Flange,Orifice Flange,Reducing Flange,Integral flange,Figure-8,Paddle Blank,Paddle Spacer,Specatcle Blind,Squre Flange,Reducing Flange, Orifice Flange

Material

1.Carbon Steel

A105,A350 LF1,A350 LF2,A350 LF3

2.Stainless Steel

ASTM SA-182/SA-182M F304,F304H,F304L,F316,F316H,F316L,F321,321H,F316Ti,317,F317H,F347,F904L,F310

3.Duplex Stainless Steel

F51,F53,F60

4. Hastelloy

Hastelloy  B,Hastelloy  B-2,Hastelloy  B-3,Hastelloy  C-4,Hastelloy  C-22,,Hastelloy  C-276,Hastelloy  C-2000,Hastelloy  G-35,Hastelloy  G-30,Hastelloy N,Hastelloy S,Hastelloy X

5. Haynes

Haynes 188,Haynes 230,Haynes 556

6. Incoloy

Incoloy 020,Incoloy 800,Incoloy 800H,Incoloy 800HT,Incoloy 825,Incoloy 925,Incoloy A-286,

7. Inconel

Inconel 600,Inconel 601,Inconel 617,Inconel 625,Inconel 718,Inconel X750

8. Monel

Monel 400,Monel 401,Monel 404,Monel K-500

9. Nickel

Nickel 200,Nickel 201
